Question: Picture Choice block

Sofia Teran Updated by Sofia Teran

For Landbot (Web)

We made some improvements to this block in Landbot 3! Let's take a look ๐Ÿ‘€

Picture choice question: as visual as it can be! Provide options in form of images your visitors can select:

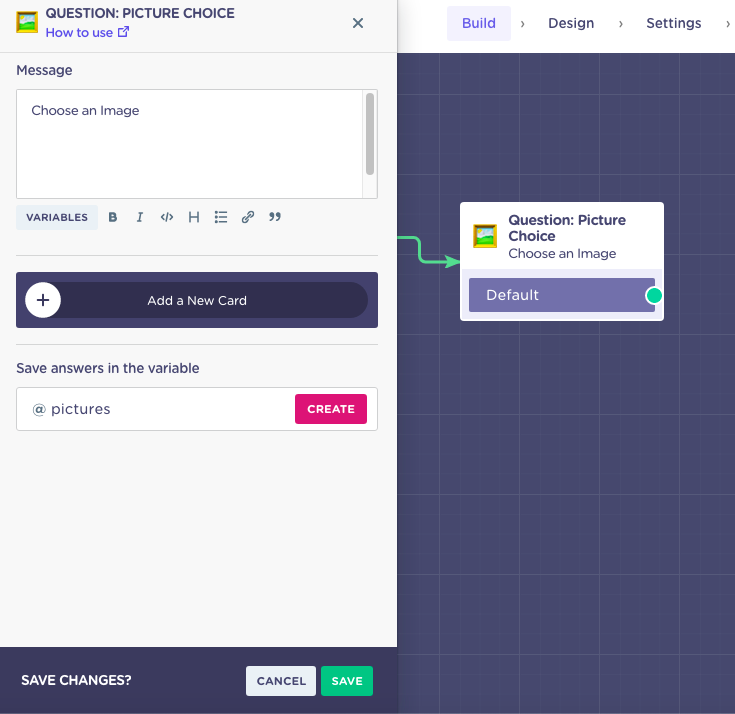

  1. First, drag and drop the green dot and type in "Picture Choice" to create this type of question.
  2. You'll see a menu where you can a Card which will be the picture option, the variable name where the answer will be saved will be @pictures by default, but you can customize it!

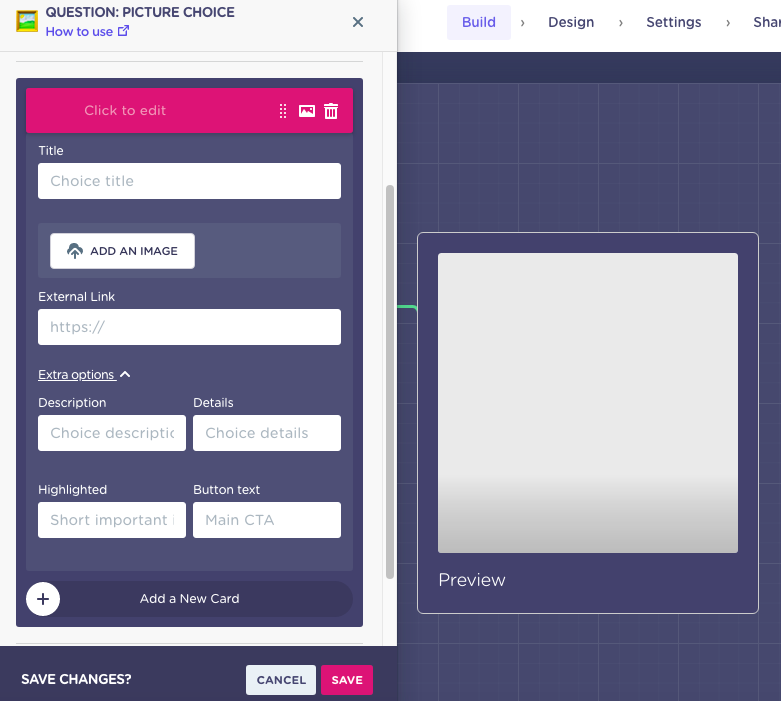

  1. Once you add the first Card, you will be able to customize the title, image, external link, and extra options like: Description, Details, Highlighted, Button text. Besides, you will see a little preview of how it will look the Card

Title

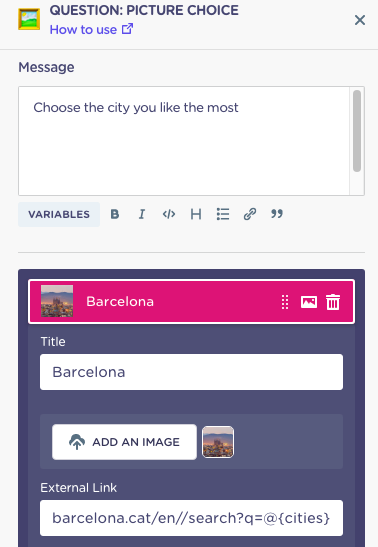

First of all, you will have to add a question in the Message section, then in the title, you have to write the name of the Card which will be related to the Question, for example:


You can click on Add an image to send media through: Upload your file (Browse), From URL or Giphy

Here you have two options:

  1. Add an external link to each picture so that when the user clicks on the picture, a new tab (window) will be opened with the link you have added to that option. But you must add it by typing " https:// before the link for it to work correctly.
  1. You can add here an external Link to sync with the Button text to add a CTA (Call to Action) which means click on the button and open a new tab with the URL added.

To make this action you must add /search?q=@{variable} at the end of the Link. Write the variable inside the {} is the variable that you used to save the answers of the picture choice, example: https://ajuntament.barcelona.cat/en//search?q=@{cities}

Warning: the URL must be an HTTPS://ย otherwise you will get an error that will not allow you to save changes.

Extra options

Description

Here you can write the main description of the Card:

Details

Here you write several details like relevant information about the card:

Highlighted

Here you write short important information or you can also add a rating according to your card:

Button Text

This section is mainly for the CTA sync with the Link of the external link added /search?q=@{variable}

You just have to write the name that you want to give to the Button:

Final view in the Builder of Landbot 3 after adding more Cards

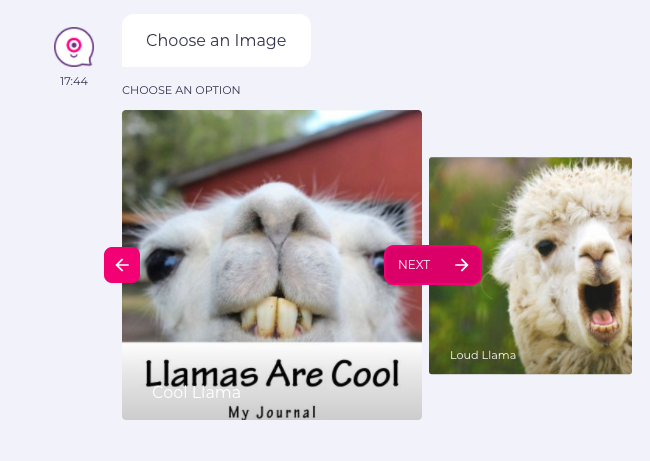

Final view of the Chatbot in Landbot 3:

Landbot 2 will remain the same as before, all the updates are just in Landbot 3 ๐Ÿ‘†๐Ÿป

Final view of the Chatbot in Landbot 2:

For WhatsApp

This block/functionality is not compatible with Whatsapp.

For a list of all the blocks and current functionalities with Whatsapp bots, please check here

For Facebook Messenger

This block/functionality is not compatible with Messenger.

For more information, please check our Academy video here, you must be registered in our free Academy ๐Ÿ‘ฉโ€๐Ÿ’ป
